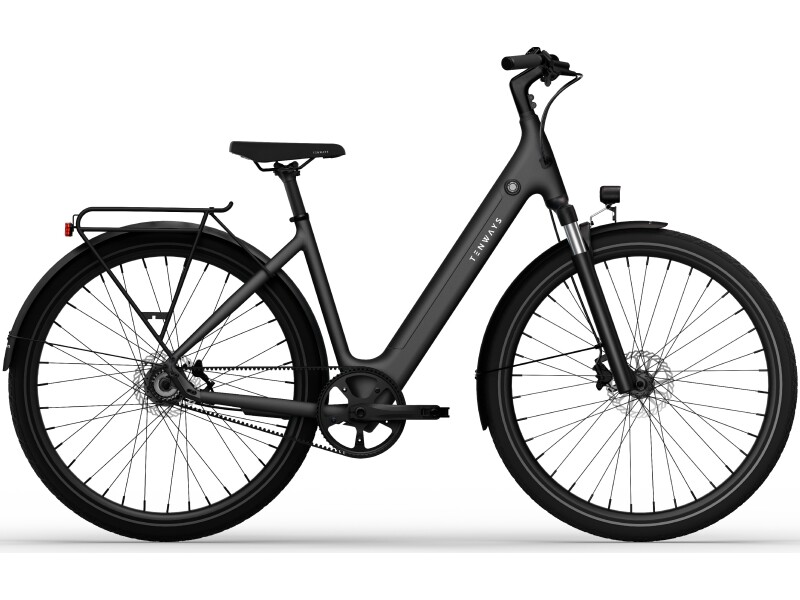

Tenways CGO800S

Name: Tenways CGO800S
Brand: Tenways
Price: 1899.00 EUR
Availability: InStock

ab 1899,⁰⁰ €

Ausführung wählen:

48 cm
Farbe: Pebble Grey 1899,00 €

Zu den Spezifikationen

Das Tenways CGO800S ist verfügbar bei: Zweirad Vogel

Dein Standort: DE Standort auswählen

GTIN 8721055331308 ArtNr. 081101480014

Spezifikationen

Rahmen

Rahmen: TENWAYS CGO800S-2024 Frame,dwg:AT45T12-480,700C×480mm,YS728 80%,Midnight Black,A5, Aluminium

Gabel / Dämpfer

Gabel: SR suntour Fork 700C C-GO 800S alloy,SF24-NEX-E25-DS-700C-63,black Gabel Federweg: 50

Schaltung

Anzahl Gänge: 1

Bremsen

Bremsen: Tektro, HD-M275 Bremshebel: Tektro, HD-M275 Bremshebel Vorderrad: Tektro, HD-T275, with 900mm oil tube Bremshebel Hinterrad: Tektro, HD-T275, with 1650mm oil tube Bremsscheibe vorne: PRT006-160,cassette disc,high polish Shimano standard,disc outer diameter 160mm Bremsscheibe hinten: Mivice Rotor, 2Cr13, 160mm, for M070 motor,w/ 6pcs of srcew T25_M5×9

Laufräder

Felge vorne: LYE-026B,aluminum,double-deck,matt black,700C*1.5*14G*36H,height 18,inner width 20,outer width 27 Felge hinten: LYE-026B,aluminum,double-deck,matt black,700C*1.5*13G*36H,height 18,inner width 20,outer width 27 Reifen: CST, C1635,rubber,60TPI,black,28"*2.0"(700*48C),3mm orange stab-proof,w/ reflective stripe Nabe vorne: RX-25,2 bearing disc rotor type,aluminum,anode black,M9*14G*36H*100*108,shaft core 45#,w/ QR24 aluminum black quick release,L:115MM Speichen: Stainless steel 304H,14G,290mm,black,w/ 16mm& stainless steel 304H,14G,286mm,black,w/ 16mm& stainless steel 304H,13G,267mm,black,w/ 16mm

Cockpit

Lenker: CHB-A6353 and add 2 cable threading holes as CBH-C-G800-002C,aluminum,matt black,riser handlebar,W:635MM*2.2T,fit with stem φ31.8MM,H:41MM,37°,grip distance≥185MM,w/o LOGO Steuersatz: FP-H869T,hidden toothless head set,aluminum,matt black,Φ28.6*Φ41.8*52*Φ39.8,H:11.2mm,w/o locker Griffe: G220,black PU,130MM,bi-pass,w/ black HL-05 plug (ø19.9),w/ aluminum anode black locking ring

Sattel

Sattel: SR, A037HR0028014,black 8014#/vacuum foaming/ bridge BED print 065# scale mark,no clip/no edge Sattelstütze: RSP-AD001,aluminum,matt black,ø30.4*350mm,laser carving safety line and scale,w/ black clip,black screws, ISO-M standard

Antrieb

Kurbelsatz: Prowheel, EB08（SOLID),170mm,matt black（LH/RH）,for 9/16" Antrieb: Gates, CDN, 11M-125T-12CT Zahnkranz: Gates, CDX,CT11605AA,60T,BCD:130MM,fit for 5-arm,aluminum alloy(black) Pedale: FP-877ZP,engineering plastic composite material,black,9/16",w/ bead,BS/CPSC/DIN standard reflector,ISO-M,stick 'L' & 'R' label

Beleuchtung

Frontleuchte: DH002, 36V, LED, Black, with 50MM waterproof cable Rückleuchte: Sate-Lite,M4(all red,w/ brake sensor),mudgurad rear light,6~48V,black plastic shell,red light cover

Anbauteile

Gepäckträger: Rear carrier,aluminum,matt black Schutzbleche: NB28-CGO800-003D,D58,aluminum,2.0T matt black,wide 58mm,height 19mm,w/ black stainless steel stays (L=255mm),w/ black adjuster and screw accessory,w/ CP-001 connecting clip,front fixed hanger,rear fixed hole, cable hole on left of rear mudguard Ständer: YX-KS11C,aluminum,matt black,285-355MM adjustable,lock hole distance 40MM,w/ 2PCS black screws M6*20MM(w/ teflon paste,w/ outer diameter φ10 spacer),plastic black kickstand

Motor

Motor: Mivice M070 250W 40Nm Hub Motor Drehmoment des Motors (Nm): 40 Akku: Lithium-ion Battery,36V,13.2AH,EVE-18650 cell 3300MAH,40pcs cells, limit 15A,CANBUS, YS 728 80%,Midnight Black Akku-Kapazität: 475 Display: Kingmeter, K5248+L5,LCD display Ladegerät: MDA254,for lithium battery, 36V/42V,3A input voltage 100-240V,50/60Hz,DC2.1 charger plug,AC plug EU standard/C type,CE standard,packing size:218*138*55MM

Empfehlungen

Körpergröße Min.: 155 Körpergrösse Max: 190

Technische Daten - Gewichte

Nettogewicht (kg): 19,00 Zulässiges Gesamtgewicht: 120
