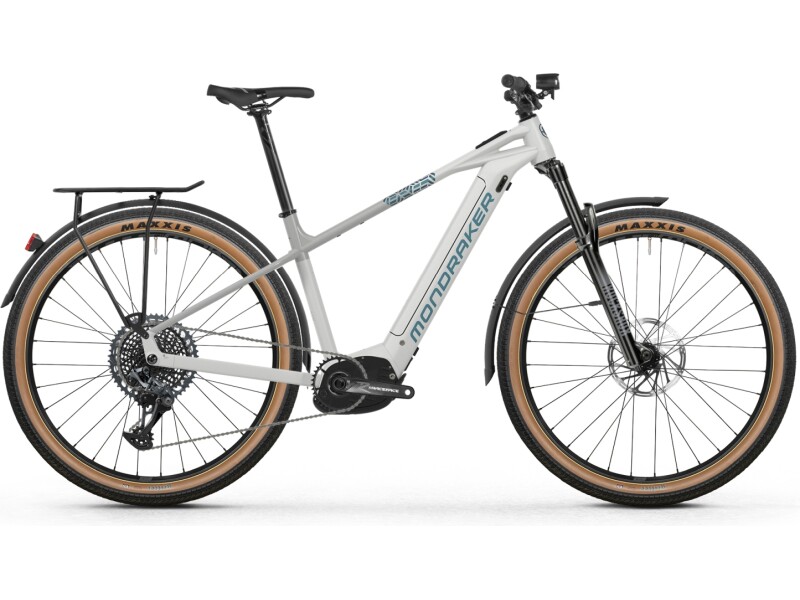

Mondraker PRIME X

3999,⁰⁰ €

Ausführung wählen:

S (390mm)
Farbe: Gray/Green 3999,00 €

Zu den Spezifikationen

Das Mondraker PRIME X ist verfügbar bei: Probst KG

Dein Standort: DE Standort auswählen

GTIN 8435392892520 ArtNr. 010.25292

Spezifikationen

Rahmen

Rahmen: Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, integrated dropout speed sensor

Gabel / Dämpfer

Gabel: RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Schaltung

Schaltung: Sram SX Eagle,12s - Sram UDH Schalthebel: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Bremsen

Bremse vorne: Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad Bremse hinten: Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad Bremshebel: Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Laufräder

Felgen: MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes Reifen vorne: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, Reifen hinten: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, Nabe vorne: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts Nabe hinten: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub Speichen: CN round stainless steel

Cockpit

Lenker: Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. Vorbau: MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore Steuersatz: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º Griffe: Onoff Beehive, 1lock-on, 135mm

Sattel

Sattel: MDK urban Sattelstütze: Onoff S3 0-R, diameter 31.6mm, length 400mm

Antrieb

Kurbelsatz: Race Face Aeffect-R ebike, 165mm Antrieb: Sram SX Eagle, 12s, Powerlock Zahnkranz: Sram PG-1210, 11-50T, 12s Pedale: Urban pedal resin black

Beleuchtung

Frontleuchte: 150LUX output DC 6-12V, waterproof Alloy cage Rückleuchte: Fender Mount, w/ Reflective, e-bike version, 6-12V

Anbauteile

Gepäckträger: Alloy MDK rear Rack, Max loading 25kg Schutzbleche: Alloy black MDK custom fenders Ständer: Massload KSA18-40

Motor

Motor: New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y) Akku: Bosch Powertube 625Wh Akku-Kapazität (Wh): 625 Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Allgemein

Gewicht (kg): 24,30
