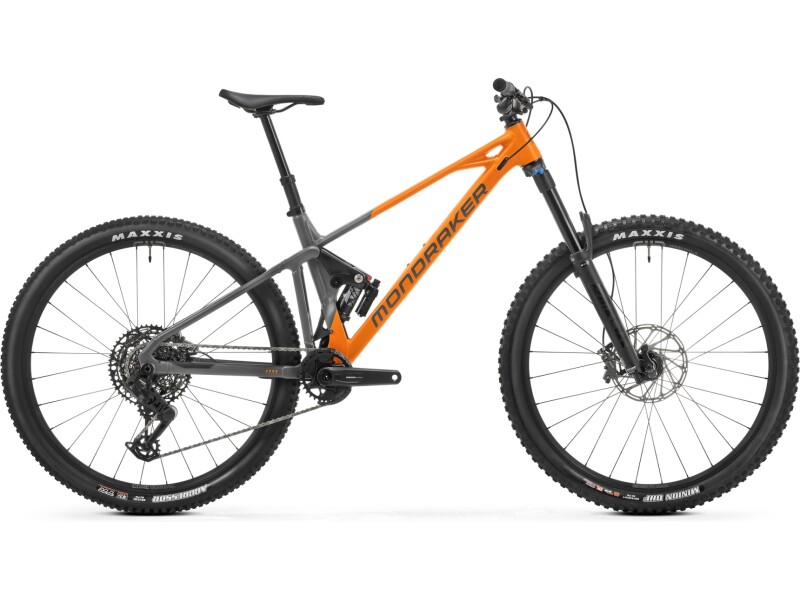

Mondraker FOXY R

Name: Mondraker FOXY R
Brand: Mondraker
Price: 4499.00 EUR
Availability: InStock

4499,⁰⁰ €

Ausführung wählen:

L (445mm)
Farbe: Orange/Grey Bei 1 Händler verfügbar 4499,00 €

Zu den Spezifikationen

Das Mondraker FOXY R ist verfügbar bei: 1 Shops

Dein Standort: DE Standort auswählen

GTIN 8435392891257 ArtNr. 010.25071

Spezifikationen

Rahmen

Rahmen: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link

Gabel / Dämpfer

Gabel: Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload Dämpfer: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x8mm bottom bushings - Light compression, light rebound, air volume spacer 0.6

Schaltung

Schaltung: Sram S1000 Eagle AXS T-Type, 12s Schalthebel: Sram Eagle AXS Pod, 12s

Bremsen

Bremse vorne: Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Bremse hinten: Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Bremshebel: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Laufräder

Felgen: e*thirteen Grappler Core, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes Reifen vorne: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead Reifen hinten: Maxxis Aggressor 29x2.3 WT, tubeless ready, dual compound, Exo protection, 60TPI, folding bead Nabe vorne: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts Nabe hinten: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub Speichen: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Cockpit

Lenker: Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. Vorbau: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore Steuersatz: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º Griffe: Onoff Beehive, 1lock-on, 135mm

Sattel

Sattel: SDG BEL-AIR 3.0, LPU foam, steel rails Sattelstütze: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Antrieb

Kurbelsatz: Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55 Innenlager: Sram DUB BSA, sealed bearings, 73mm, wide Antrieb: Sram GX Eagle T-Type, 12s, Powerlock Zahnkranz: Sram XS-1270, 10-52T, T-Type 12s

Technische Daten - Gewichte

Nettogewicht (kg): 16,50
